Opis

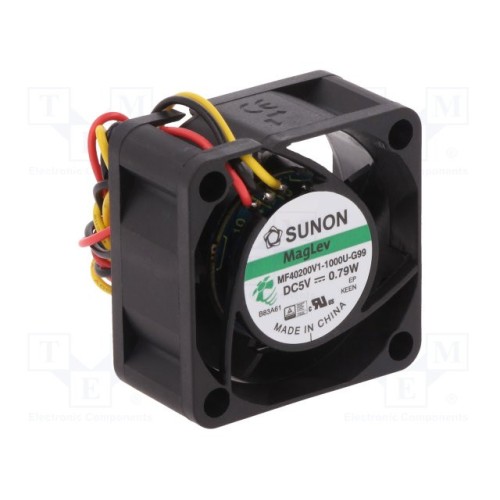

Manufacturer SUNON
Type of fan DC
Kind of fan axial
Supply voltage 5V DC
Operating voltage 4.5...13.8V
Fan dimensions 40x40x10mm
Power consumption 1.2W
Current rating 0.1A
Fan efficiency 13.6m3/h
Noise level 32dBA
Kind of Bearing slide bearing
Rotational rate/speed 7000 (±15%)rpm
Weight 13.5g
Current and power consumption tolerance ±15%
Min. insulation resistance 10M?
Impeller material thermoplastic
Enclosure material thermoplastic
Insulation class E
Leads 2 leads
Operating temperature -10...70°C
Static pressure 4.82mm H2O
Cable length 300mm
Fan motor brushless DC motor
Flammability rating UL94V-0
Wire size 26AWG
