Opis

Manufacturer NINIGI
Switch type microswitch
Switches features with lever
Contacts configuration SPDT

AC contacts rating
(at resistance load) 5 A / 250 VAC
Switching method ON-(ON)
Stable positions number 1-position
IP rating IP40
Leads for soldering

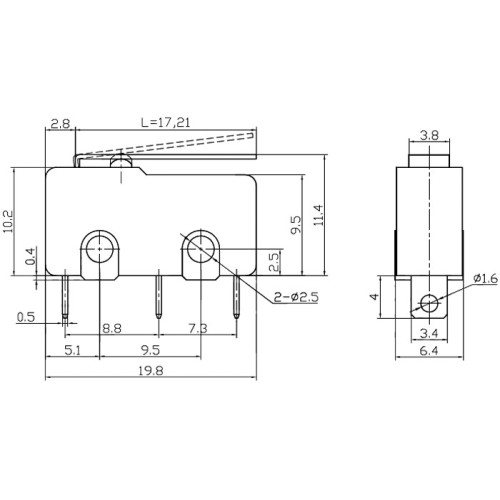

Body dimensions 19.8 x 6.4 x 10.6mm
Operating temperature -25...65°C
Operating Force 1.5N
Lever length 17mm
Electrical life 30000cycles
Max. contact resistance: 30m?
Min. insulation resistance 100M?
Terminal pitch 7.3mm
