Opis

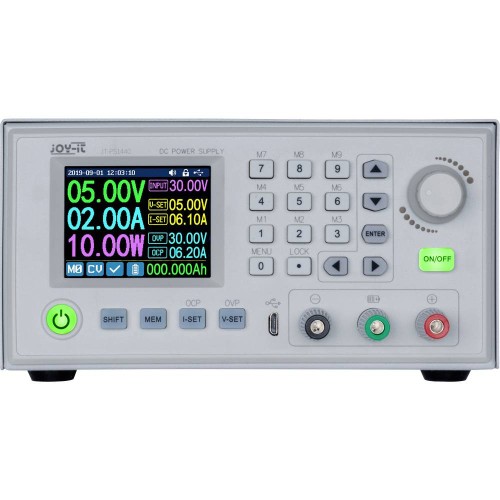

PS 1440C -Pro Edition 0-60V, 0-24A, 1440 watt, RS485 interface

Highlights & Details
No. of outputs 2 x
0 - 60 V / 0 - 24 A
1440 W
1x RS485
remote controlled, programmable, slim type

Technical specifications

Complete device ready for immediate use,
RS485 interface (external GX12 plug)
Battery charging function
Overcurrent and overvoltage protection adjustable
Integrated RTC
NTC temperature sensor
Inclusive of more
Documentation in English, German and French
Accuracy of the input voltage ± 1 % + 5 digits
Accuracy of the output voltage ± 0.3 % + 3 digits
Accuracy of the output current ± 0.5 % + 5 digits
Voltage of battery measuring accuracy ± 0.5 % + 3 digits
Input voltage measurement resolution 0.01V
Output voltage measuring resolution 0.01V
Current measurement resolution 0.01V
Voltage of the battery measurement resolution 0.01V
Reaction time in constant voltage mode 2 ms @ 0.1 - 5 A
Load control in constant voltage mode ± 0.1 % + 2 digit
Load regulation in constant current mode ± 0.1 % + 3 digits
Measurement range for electric charging 0 - 9999.99 Ah
Measuring range of energy 0 - 9999.99 Wh
Statistical errors with electrical charging and energy ± 2%
Output ripple
100 mV VPP at 12 V,
150 mV VPP @ 24 V
Temperature of the sensor detection range -10 - 100 °C / 0 - 200 °F.
Temperature of the sensor Detection accuracy ± 3 °C / ± 6 °F.
Operating mode step-down mode
