Opis

karakteristike

kućište: sivi ABS
minijaturna magnetna sklopka, zatvara se kada se približi magnet
montaža sa vijcima

Specifications

contact: NC
switching voltage (max): 1~100V AC/DC
switching current (max.): 0.5A
contact capacity (max.): 10VA
initial contact: 0.2 ohm max
carry current (max.): 1A
breakdown voltage: 200Vdc
insulation resistance: 100M ohm min.
switch cycle: 5 x 10 (7) at 30V 0.1A DC
with leads (on switch): 300mm
operating gap: max. 23mm

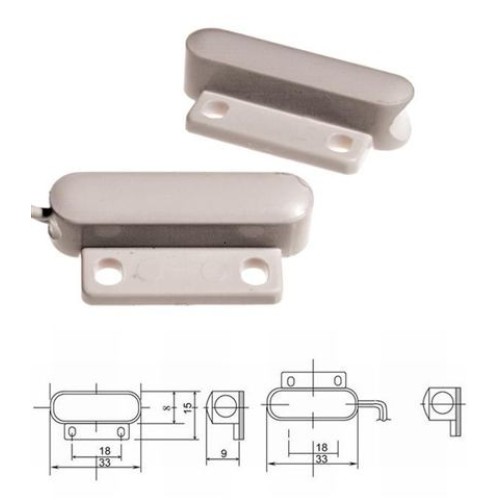

dimensions: 34 x 15 x 8mm
