Opis

karakteristike

kućište: sivi ABS

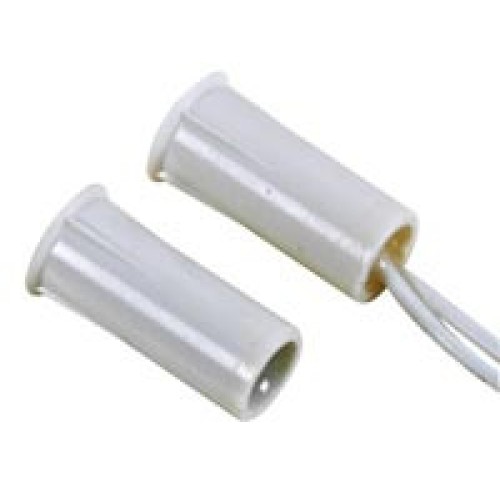

minijaturna magnetna sklopka, u mirnom stanju je kontakt zatvoren

recessed mount
Oki reed switch
install into doors/doorframes, windows/window frames...
can be used for metal doors (depending on the installation, application, and size of the metal door)

tehnički podaci:

- colour: white/brown
contact: closed loop, normal closed
gap width: 15mm
wire length: ±25cm
mount: flush mount O9mm (1/3in), press fit
contact rating: 0.1A@30VDC
lifetime (resistive loads): 1.000.000 (6VDC,10mA)
operating temperature: -10~60°C
dimensions: O9 x 22.5mm
weight: ±20g
