Opis

Description

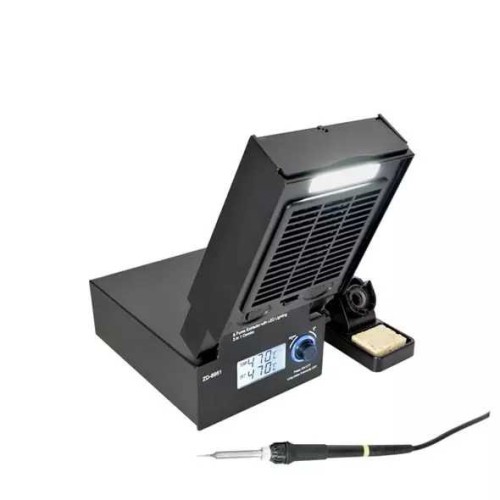

Soldering station ZD-8951 and smoke extractor with LED lighting. 3-in-1 device.
The two-line backlit LCD display shows both the set and actual soldering tip temperatures.
Long-life tip N9-1 with a tip radius of R0.5 mm.
With the fast heating function, it reaches the set temperature of 400°C at ambient room temperature in less than one minute.
The heating element with a nominal power input of 60W/24V reaches up to 130W during fast heating.
The heater is galvanically isolated from the 230V mains, contains a PTC temperature sensor and is connected to the heating electronics by a four-core cable.
The smoke extraction fan has a consumption of 23W and an air flow of up to 1m3 per minute and extracts smoke through an activated carbon filter.
The lighting has 12 LEDs with a total power input of 5W.
The connecting cable of the soldering station has a three-pole plug of the European type and three cores 0.75 mm2.


Product parameters:

- temperature-controlled soldering station with fast heating with LED light and smoke extraction
- temperature range: 160 to 480°C (320°F to 896°F), easy temperature setting
- with rapid heating function, rising from room temperature to 400°C (752°F) takes less than 1 minute
- temperature indication in °C and in °F
- fast heating element with PTC sensor
- smoke extraction up to 1m3/min with activated carbon filter
- sponge for wiping the soldering tip
- hot tip storage stand
- LED light with a power of 5W


Technical parameters :

- power consumption 60W (with fast short-term heating up to 130W)
- ceramic heating element 60W/24V with built-in temperature sensor, 4-pin
- plastic solder handle with rubber parts for protection against heat
- temperature range: 160 to 480°C (320°F to 896°F)
- smoke extraction consumption 23W and air flow up to 1m3 per minute
- lighting 12 LEDs with 5W power input
- station dimensions : 23 x 17 x 14-41 cm (tilted fan - built vertically)
- stand dimensions : 16 x 6 x 8 cm


Package contents :
- soldering station ZD-8951
- contains solder handle with four-core cable
- contains tip N9-1 o6.4mm, length 44mm, R 0.5mm
- contains ceramic heating element
- contains a sponge for wiping the soldering tip 42 x 51mm
- 1pc of replacement filter with activated carbon 120 x 120 x 10mm
- instructions for use
