Opis

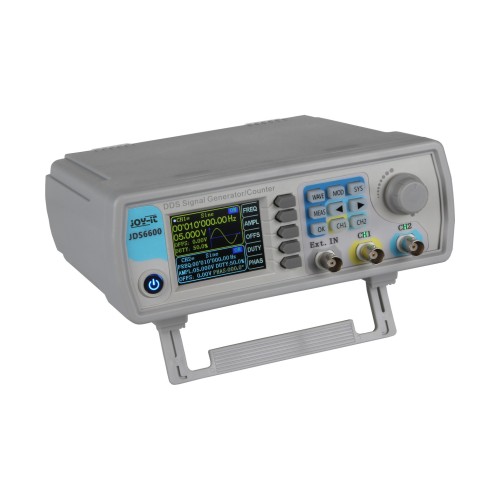

The JT-JDS6600 is a 2 channel signal generator which produces signals up to 60 MHz.
It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.
Additionally, it is an 1 channel frequency allocation integrated.
With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility.
Through its 2,4“ TFT-Colordisplay it has the operator friendliness guaranteed which reveals most diverse areas of application.
Specifications
Features
2 Channel Signalgenerator; Signal-Forms: Sine, square, triangle, pulse, half-wave, noise, Lorenz pulse, exponential rise/fall, CMOS and more; 1 Channel Frequency-Counter

Frequency-Range (Sine)
0 - 60MHz
Frequency-Range (Square, Triangle)
0 - 15MHz
Frequency-Range (PWM, CMOS, TTL, Arbitrary)
0 - 6MHz
Measuring range Frequency counter
0 - 100Mhz
Min. Frequency Resolution
0,01µHz
Frequency Accuaracy
+-20ppm
Frequency Stability
+-1ppm/3h
Display Mode
TFT LCD Color display
Display Size
2,4“
Operating temperature and humidity
Temperature: 0 - 40°C / Humidity: Dimensions
194 x 178 x 69 mm
Weight
768 g
Items Shipped
Signalgenerator, 2x BNC Signal terminals, power supply
