Opis

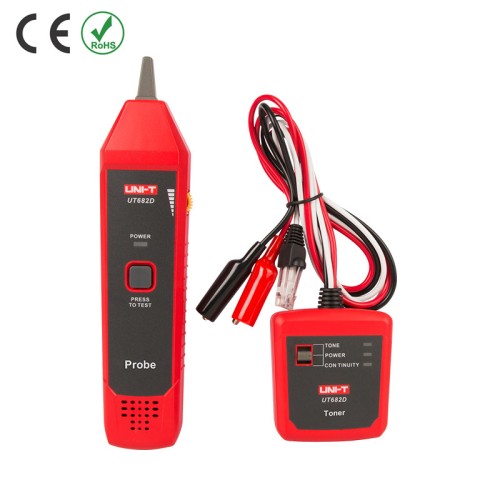

UT682D Wire Tracker

UT682 wire tracker consists of a transmitter and a receiver, it is able to track
ethernet/telephone/power cables without opening their insulation.
UT682 can troubleshoot ethernet cables and is a recommended tool for
debugging communication cables and audio/video cables.

Applications:
It can used to test continuity and check polarity on telephone lines.

Specifications
Wire tracking features :
wire types Telephone line\twisted pair\electric wire
Telephone lines tracking distance ?3000m
Polarity indication for telelphone lines DCV function, range:±(5V~52V)
Telephone lines and LAN cables distinction Jacks distinction
Transmitter output voltage 8V DC with a new battery
Transmitter power supply 9V battery
Receiver power supply 9V battery
Max receiver standby current ~10mA
Max receiver operating current

Transmitter input voltage protection 60V DC
Operating environment Operating temperature: 0~40?; Storage temperature: -10~50?
Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ?2000m

General Characterisitics
Product color Red and grey
Product net weight Transmitter-150g, Receiver-130g
Product size Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
Standard accessories 9V battery x 2
