Opis

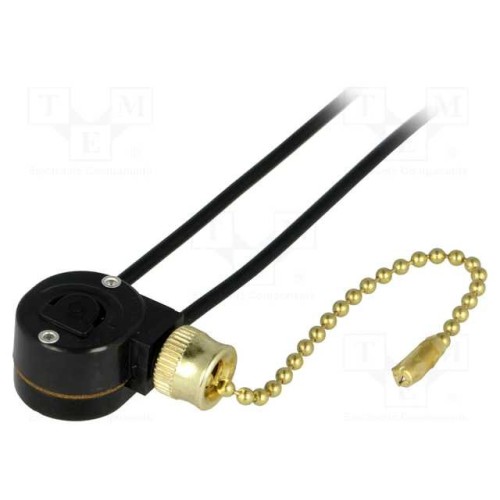

Switch type pull-chain
Stable positions number 2-position
Contacts configuration SPST
AC contacts rating
(at resistance load) 3 A / 250 VAC
Operating temperature 0...65°C
Leads 157mm leads AWG18
Mechanical durability 6000cycles
Contact material phosphor bronze
Body material polyamide
Test voltage 1kV
Panel cutout diameter 10mm
Flammability rating UL94V-2
Switching torque 4N
