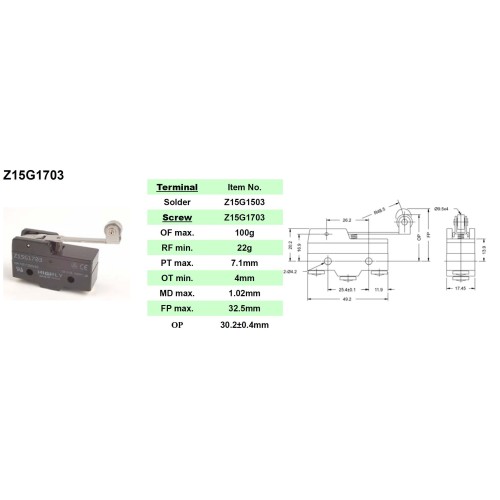

Opis

Switch type microswitch
Switches features with lever (with roller)
Contacts configuration SPDT
AC contacts rating
(at resistance load) 15 A / 250 VAC
Switching method ON-(ON)
Stable positions number 1-position
Sealing IP40
Leads for soldering
Body dimensions 49.2 x 17.45 x 24.2mm
Mechanical durability 1000000cycles
Operating temperature -25...70°C
Switching torque 1N
Lever length 48.5mm
Electrical life 100000cycles
Max. contact resistance: 15m?
Min. insulation resistance 100M?
