Opis

Specifications

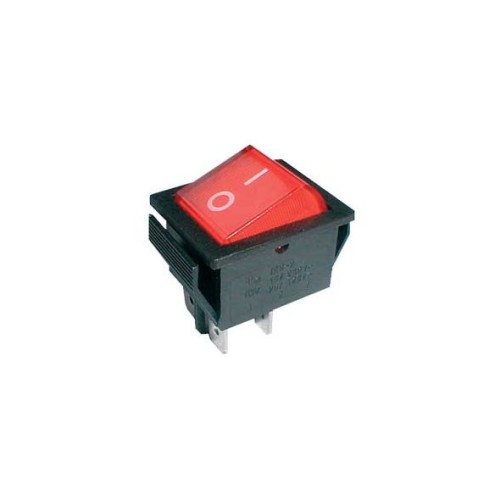

type: ON-OFF DPST
cap: red
remark: with red neon light
contact rating: 10A/250Vac, 16A/125Vac
electrical life: 20000 cycles
mechanical life: 50000 cycles
contact resistance: 50mohm
insulation resistance: min. 100Mohm at 500Vdc
dielectric strength: 1500Vac / 1 minute
materials:
housing: 66 nylon (UL94V-2)
actuator: 66 nylon (UL94V-2)
movable contacts: copper, silver-plated
stationary contacts: copper, silver-plated
terminals: copper, silver-plated
contact: spring-loaded

tehnički podaci:

Switch type ROCKER
Stable positions number 2-position
Contacts configuration DPST
Switching method ON-OFF

AC contacts rating
(at resistance load) 15 A / 250 VAC
Key button colour red
Illumination neon lamp
Max. contact resistance: 35m?
Body colour black
Operating temperature -30...80°C
Leads 6.3x0.8mm connectors
Electrical life 10000cycles
Mounting hole diameter 31 x 22.3mm
Number of positions 2
Backlight colour red
Height above panel 9.4mm
