Opis

baterija se NE SMIJE koristiti kao pogonska u električnim vozilima !! U tom slučaju ne vrijedi jamstvo !

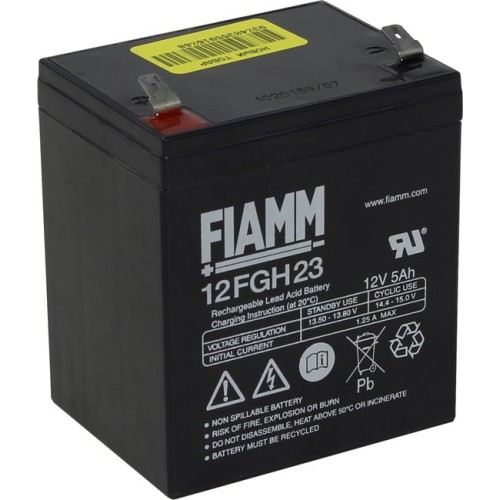

Jakostrujna baterija za UPS

faston priključak 6,3mm

dimenzije 90x71x108

Features
Nominal Voltage 12 Volt
Nominal Capacity 5.0 Ah 20 hours rate to 1.75 Vpc at 25 ° C
Float charging voltage 13.50 - 13.80 V/bloc at 25 ° C
Boost charge voltage 14.40 - 15.00 V/bloc at 25 ° C
Float voltage compensation -18mV/ ° C
Maximum charging current 1.25 A
Case ABS with HB fiammability rate (according UL 94)
Internal resistance 37 m? in full charged condition
Weight 2.00 kg
Dimensions L x W x H (TH): 90 x 70 x 102 (105)
Operative temperature range -20 °C to 50 °C
Shelf life procedures As batteries lose part of their capacity, during storage, due to self discharge.
Fiamm recommends FGH range of batteries can be stored for 6 months at an ambient
temperature of 20 and 25 °C (see attached graph on reverse). Longer storage requires
a recharge. This should be carried out in line with Fiamm recommended method; 2.4
V/cell for no longer than 24 hours at 20 °C
