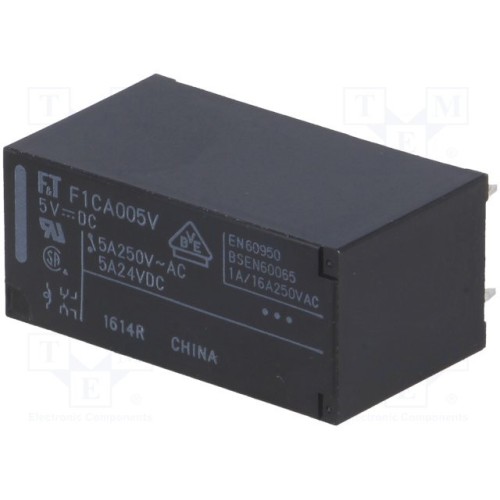

Features
• Low profile (height 16,5mm)
• FTRF1CA_: standard Type: 530mW
• FTRF1CL_/_CD: high sensivity type: 400mW
• High insulation: 8mm between coil and contacts
• Protection class RTIII


Technical Specifications

Contact DPDT
Contact Material: AgSnO2 + Au
Max. Rated/Switching Current:
FTRF1CA_, _CD: 5A
FTRF1CL_: 8A
Max. Switching Voltage: 400V AC / 300V DC
Max. Switching Power:
FTRF1CA_, _CD: 1250VA / 120W
FTRF1CL_: 2000VA / 192W
Creepage/Clearance:8/8mm
Max. Operate/Release Time:15/5ms
Testing Voltage
Coil/Contact (1Min.):5000V AC
Opening Contact (1Min.):1000V AC
Min. Lifetime
Mechanical: 20x106 Operations
Electrical:
FTRF1CA_, CD: 100x103 Operations
FTRF1CL_: 50x103 Operations
Operating Temperature:-40...+75°C
Weight Approx.: 13g

Coil Data

Part Nr. UNUAnUAbPNRN
[V DC][V][V][mW][Ohm]
FTRF1CA005V 53,50,553047
FTRF1CA012V 128,41,2530270
FTRF1CA024V 2416,82,45301100
FTRF1CD012V 1291,2400260
FTRF1CD024V 24182,44001440
FTRF1CL005R 53,750,540062
FTRF1CL012R 1291,2400360
FTRF1CL024R 24182,44001440
UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C
